MiniFreestanding

Strikingly inconspicuous

Outputs more information

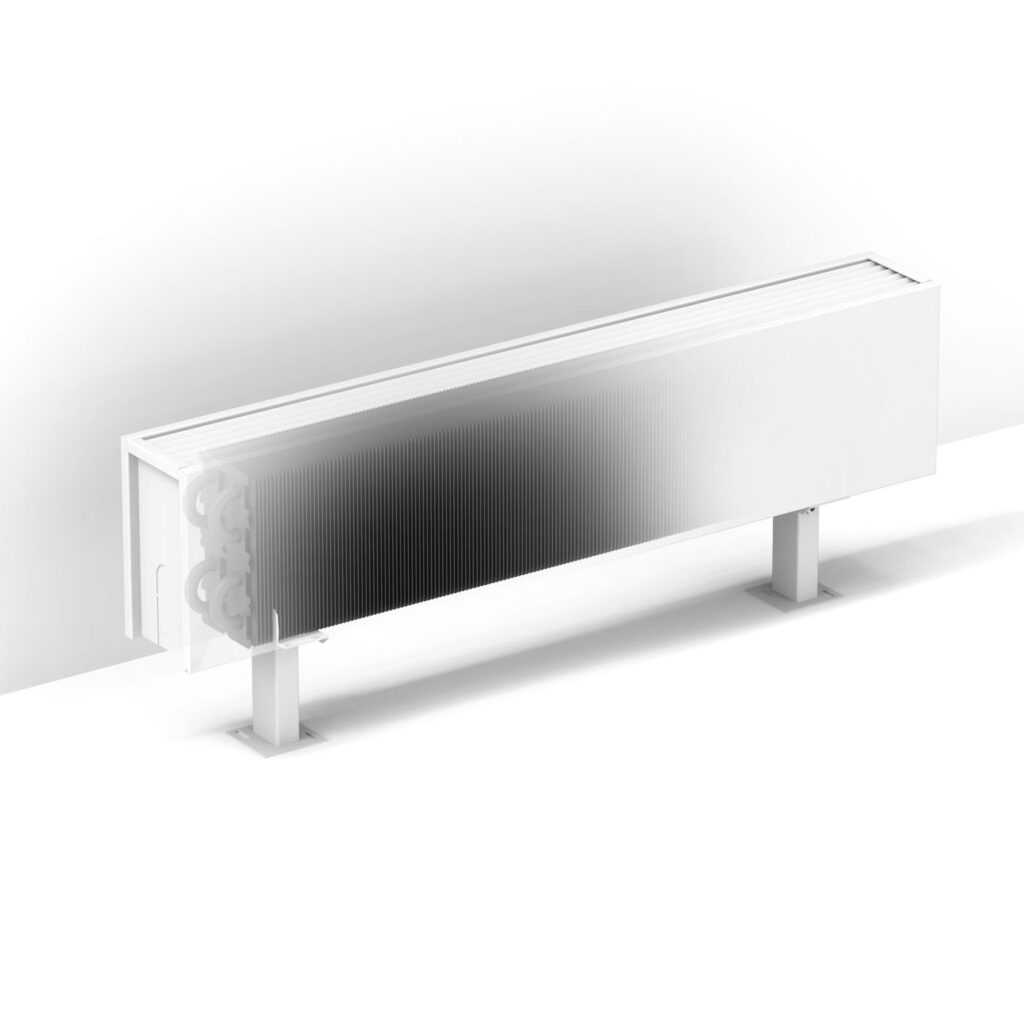

Packshot_Mini Freestanding

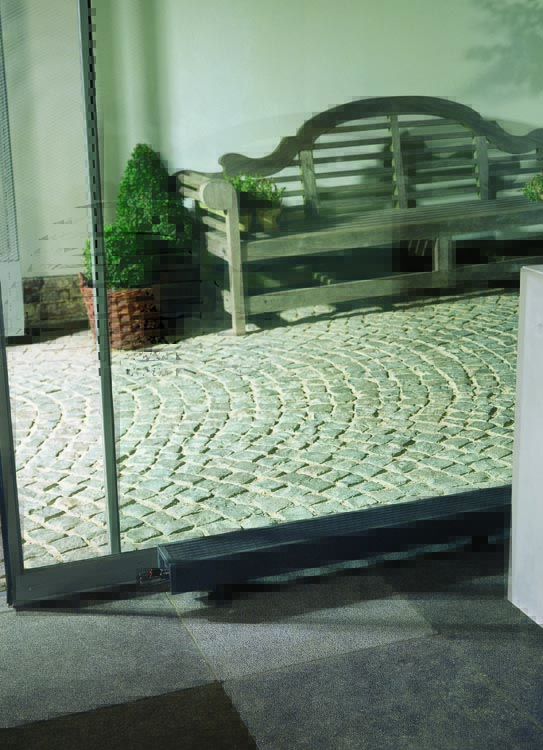

  • For spaces with large windows, glazed façades, for window displays, conservatories, under window seats and for dwarf walls
  • Discreet appearance with heights from 8cm
  • Low-H2O technology with a super conductive and ultra fast heat exchanger for low energy consumption and maximum heat emission
  • Safe surface temperature
  • 30 years warranty

Outputs

Mini Freestanding

Feet (AL/AS/FL/FM/FS) Height (H) [mm] Length (L) [mm] Type
wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Feet (AL/AS/FL/FM/FS) Height (H) [mm] Length (L) [mm] Type Heating (75/65/20) [Watts] Heating (70/50/20) [Watts] Heaitng (55/45/20) [Watts] Heating (45/40/20) [Watts] Ordering Code
1 Katie 21/03/2025 03:38 PM Katie 21/03/2025 03:38 PM AL 80 600 9 255 186 124 82 MINF.00806009.XXX/AL
2 Katie 21/03/2025 03:38 PM Katie 21/03/2025 03:38 PM AS 80 600 9 255 186 124 82 MINF.00806009.XXX/AS
3 Katie 21/03/2025 03:38 PM Katie 21/03/2025 03:38 PM FL 80 600 9 255 186 124 82 MINF.00806009.XXX/FL
4 Katie 21/03/2025 03:38 PM Katie 21/03/2025 03:38 PM FM 80 600 9 255 186 124 82 MINF.00806009.XXX/FM
5 Katie 21/03/2025 03:38 PM Katie 21/03/2025 03:38 PM FS 80 600 9 255 186 124 82 MINF.00806009.XXX/FS
6 Katie 21/03/2025 03:38 PM Katie 21/03/2025 03:38 PM AL 80 600 14 416 303 202 134 MINF.00806014.XXX/AL
7 Katie 21/03/2025 03:38 PM Katie 21/03/2025 03:38 PM AS 80 600 14 416 303 202 134 MINF.00806014.XXX/AS
8 Katie 21/03/2025 03:38 PM Katie 21/03/2025 03:38 PM FL 80 600 14 416 303 202 134 MINF.00806014.XXX/FL
9 Katie 21/03/2025 03:38 PM Katie 21/03/2025 03:38 PM FM 80 600 14 416 303 202 134 MINF.00806014.XXX/FM
10 Katie 21/03/2025 03:38 PM Katie 21/03/2025 03:38 PM FS 80 600 14 416 303 202 134 MINF.00806014.XXX/FS


Composition of the order code​​​

Hover over the parts below to find out what they stand for​​​​​

MINF 040 060 09 XXX XX

Standard Delivery

  • Low-H2O heat exchanger, air vent 1/8" and drain plug 1/2"
  • casing in one piece for connection left or right
  • Feet available in the same colour as the radiator:
    • FS fixed feet height 65mm (only for height 008 and 013)
    • FM fixed feet height 100mm
    • FL fixed feet height 120mm

Dimensions

Mini_freestanding_dimensions_DA
