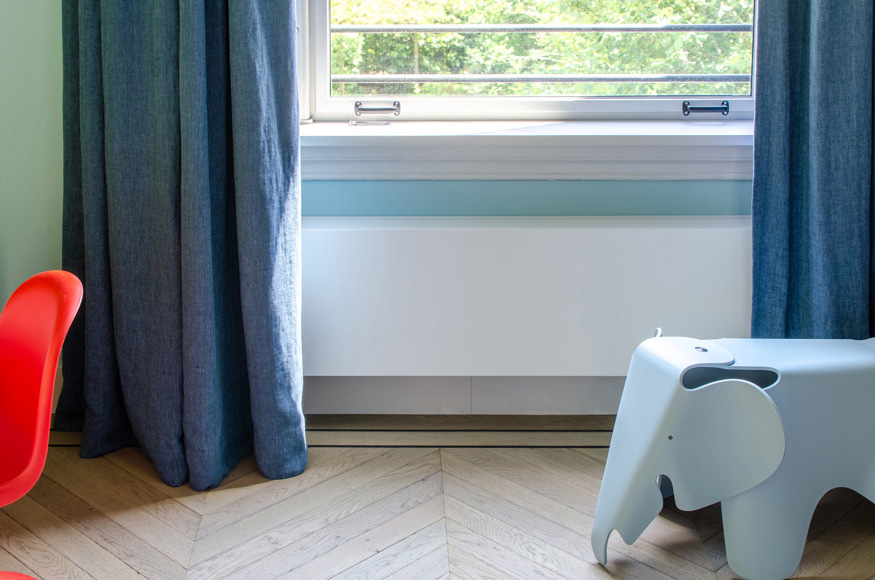

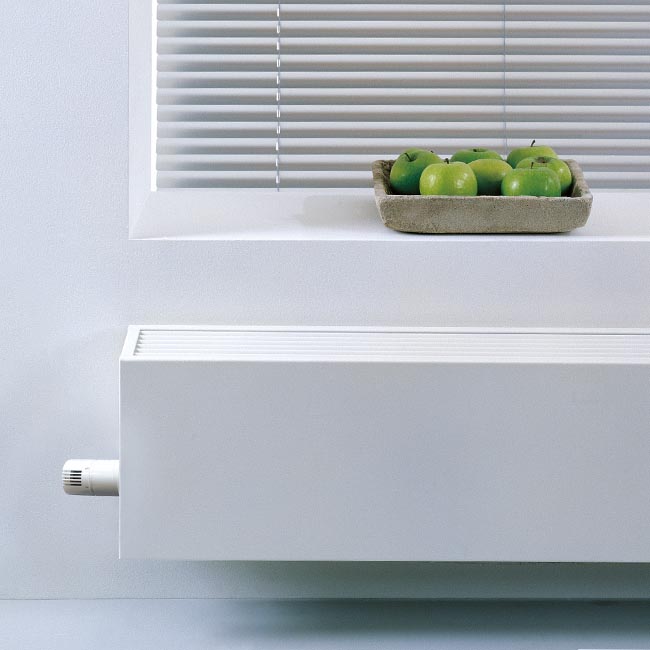

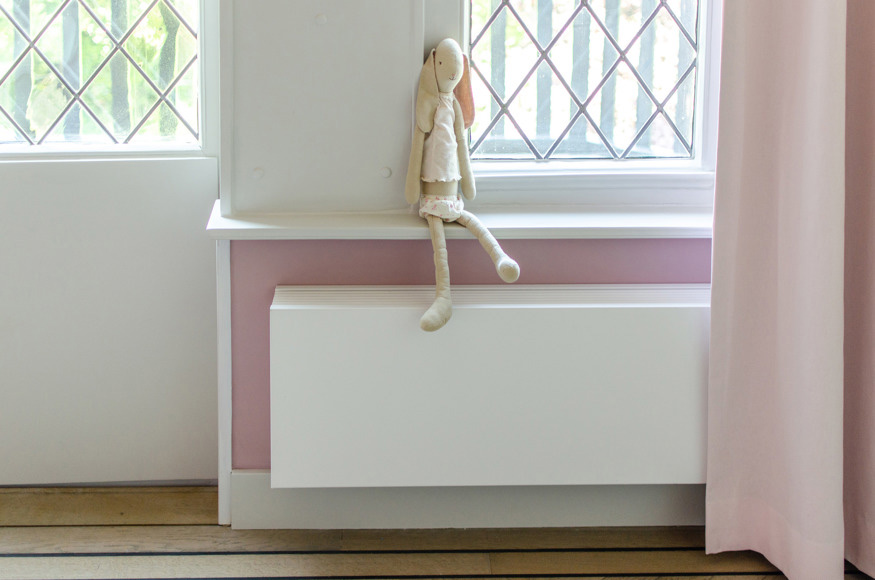

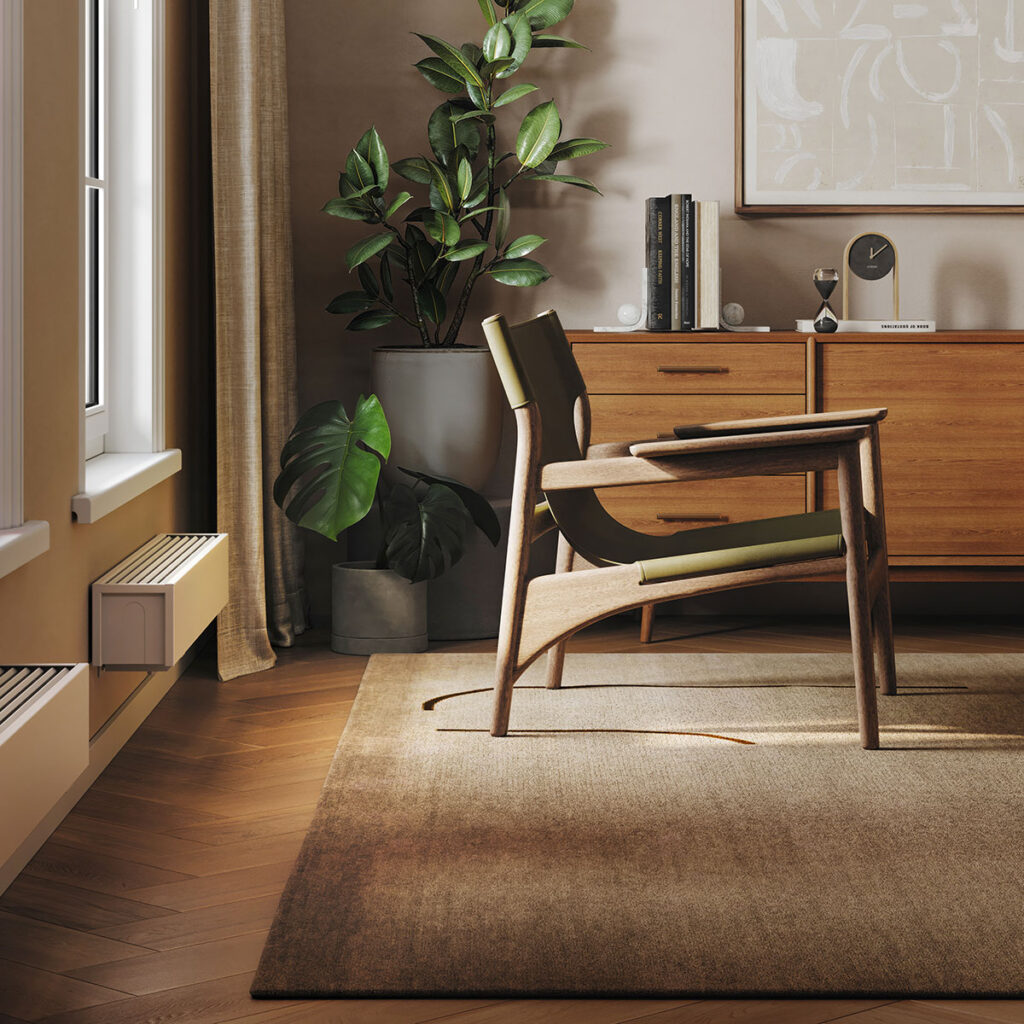

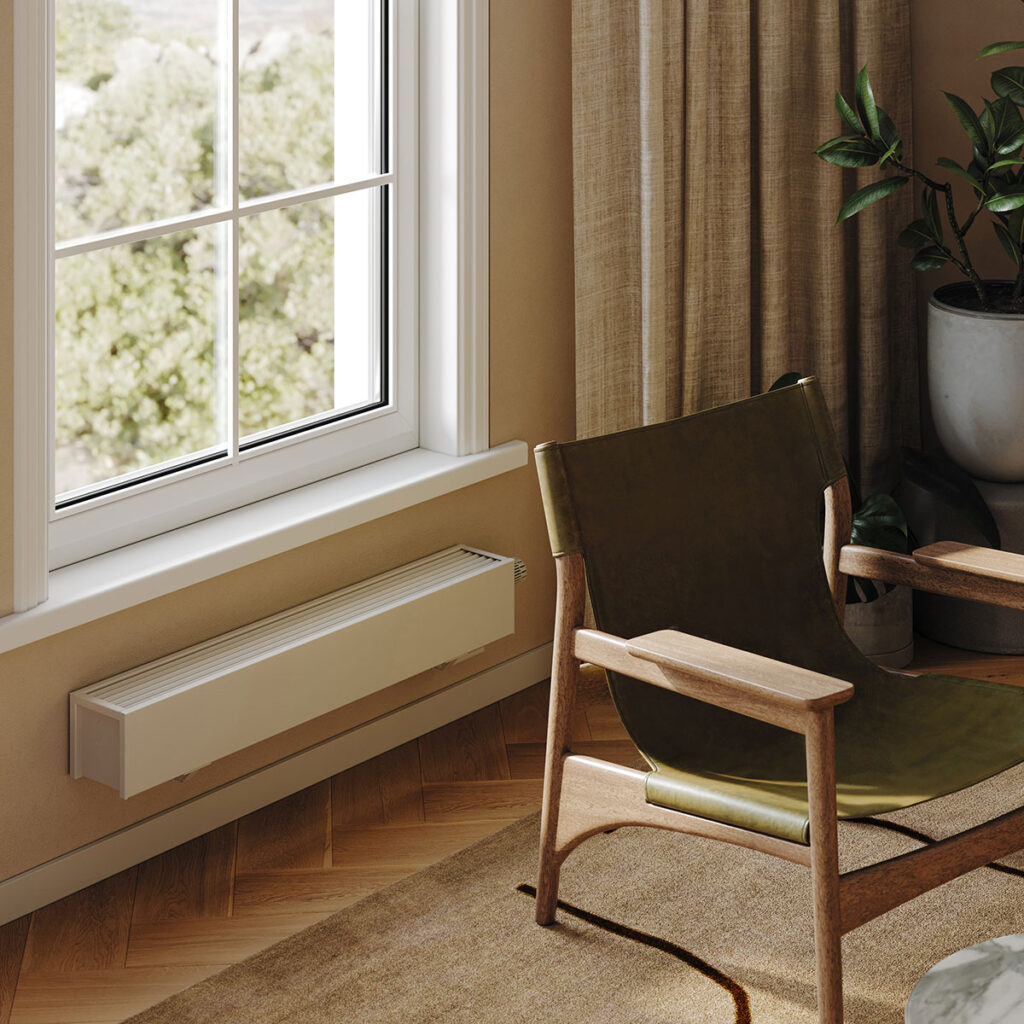

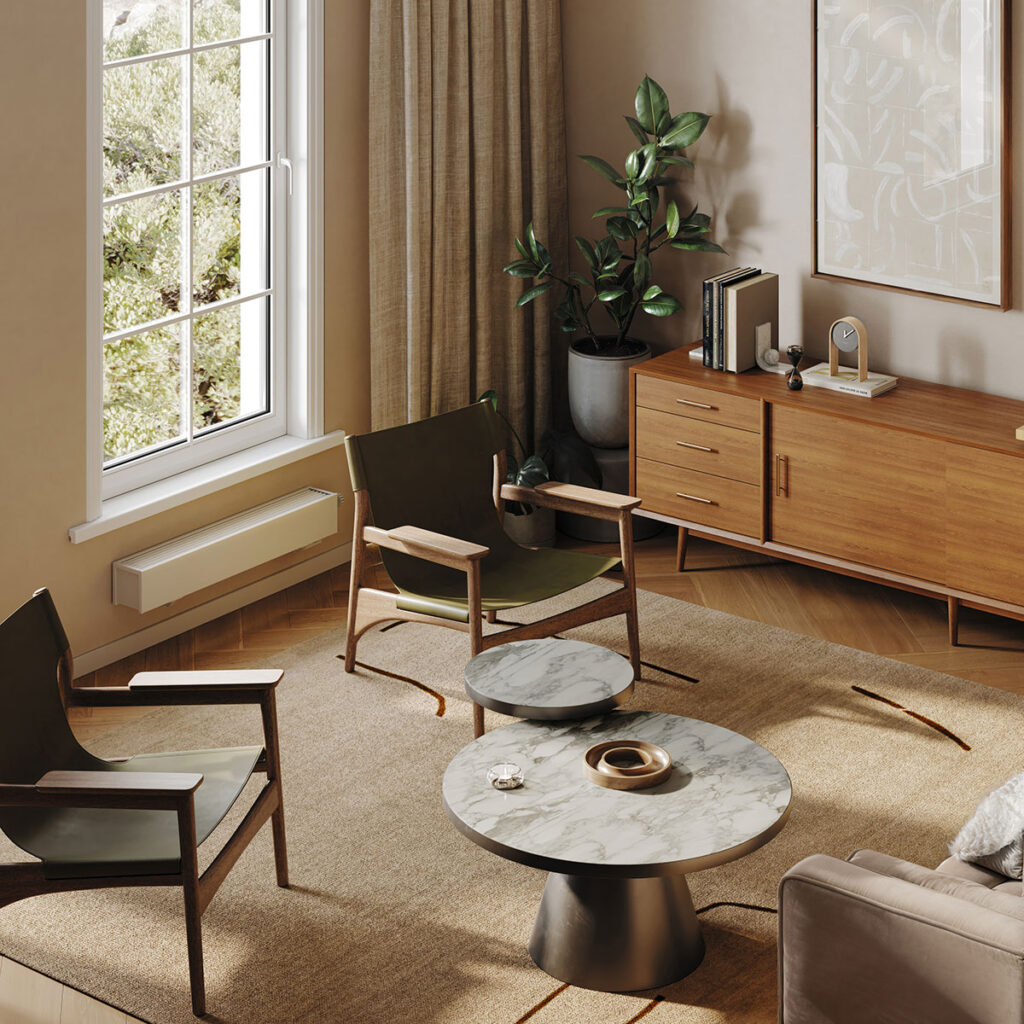

- Extremely well suited to spaces with large windows and for dwarf walls under window seats
- Heights from 8cm!

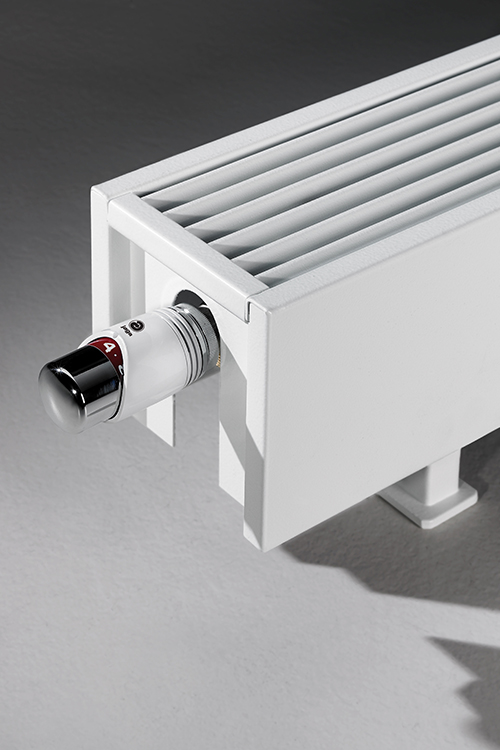

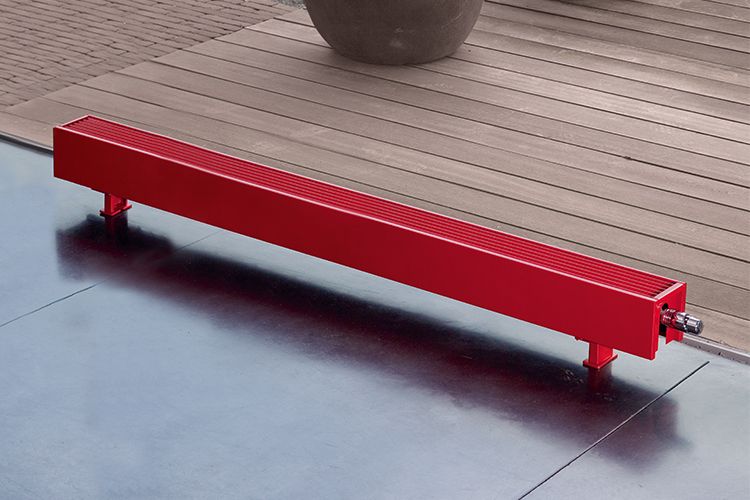

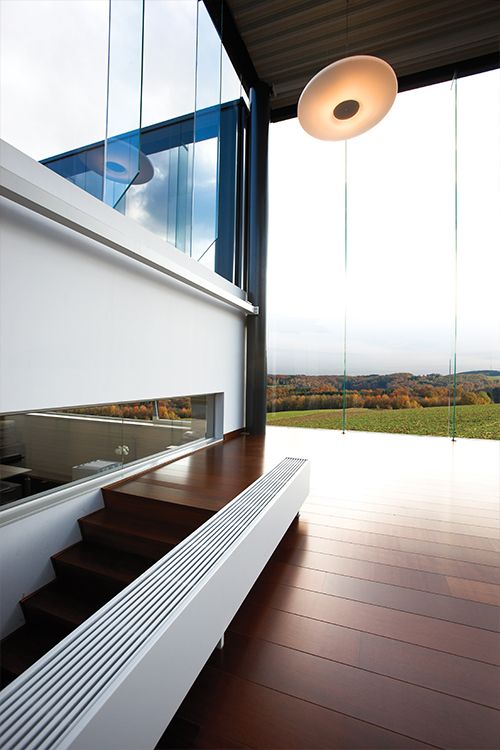

- Beautiful in combination with the free-standing Mini for glazed façades

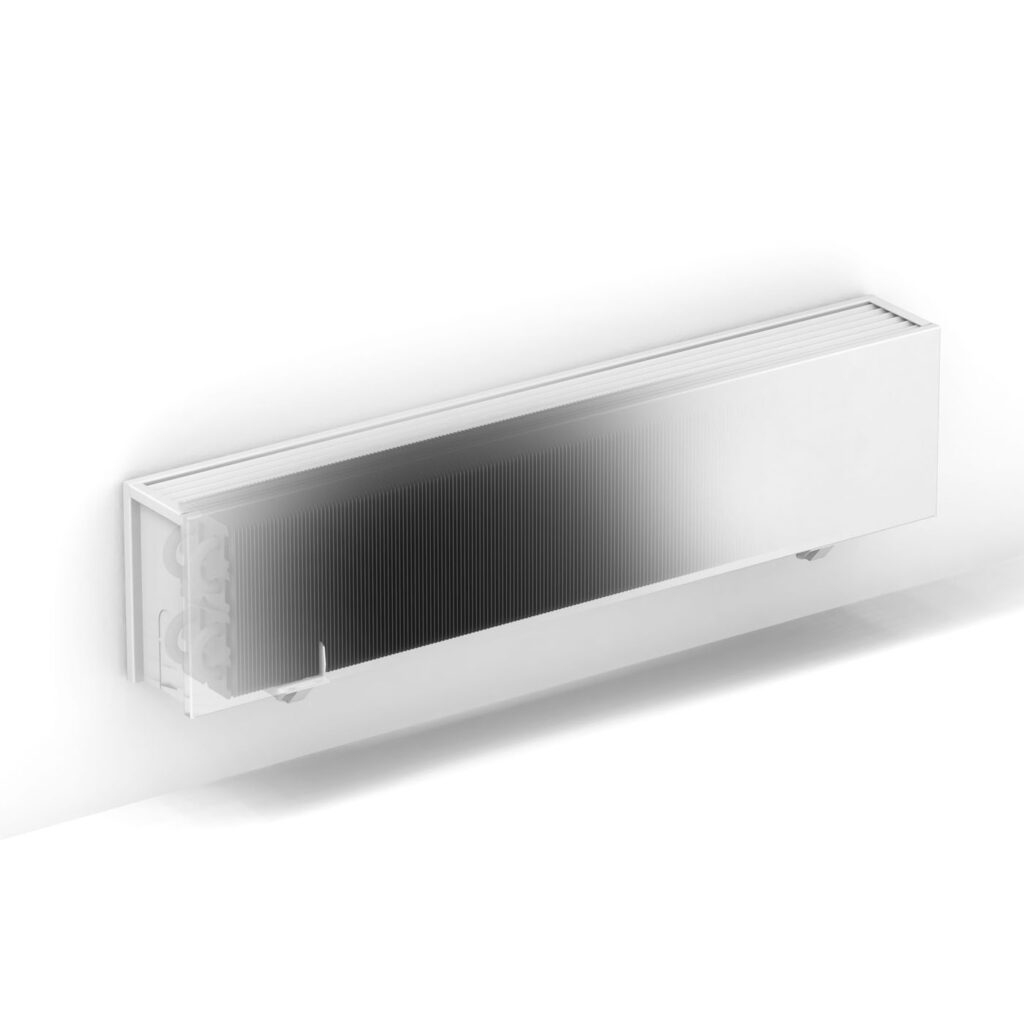

- Low-H2O technology with a super conductive and ultra fast heat exchanger for low energy consumption and maximum heat emission
- Safe surface temperature
Outputs
Mini Outputs
| Height (H) [mm] | Length (L) [mm] | Type | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| wdt_ID | wdt_created_by | wdt_created_at | wdt_last_edited_by | wdt_last_edited_at | Height (H) [mm] | Length (L) [mm] | Type | Heating (75/65/20) [Watts] | Heating (70/50/20) [Watts] | Heating (55/45/20) [Watts] | Heating (45/40/20) [Watts] | Ordering code |
| 1 | Katie | 29/01/2025 12:12 PM | Katie | 29/01/2025 12:12 PM | 80 | 600 | 9 | 255 | 186 | 124 | 82 | MINW.00806009.XXX |
| 2 | Katie | 29/01/2025 12:12 PM | Katie | 29/01/2025 12:12 PM | 80 | 600 | 14 | 416 | 303 | 202 | 134 | MINW.00806014.XXX |
| 3 | Katie | 29/01/2025 12:12 PM | Katie | 29/01/2025 12:12 PM | 80 | 600 | 19 | 572 | 417 | 277 | 184 | MINW.00806019.XXX |
| 4 | Katie | 29/01/2025 12:12 PM | Katie | 29/01/2025 12:12 PM | 80 | 700 | 9 | 298 | 217 | 144 | 96 | MINW.00807009.XXX |
| 5 | Katie | 29/01/2025 12:12 PM | Katie | 29/01/2025 12:12 PM | 80 | 700 | 14 | 486 | 354 | 236 | 157 | MINW.00807014.XXX |
| 6 | Katie | 29/01/2025 12:12 PM | Katie | 29/01/2025 12:12 PM | 80 | 700 | 19 | 667 | 486 | 323 | 215 | MINW.00807019.XXX |
| 7 | Katie | 29/01/2025 12:12 PM | Katie | 29/01/2025 12:12 PM | 80 | 800 | 9 | 340 | 248 | 165 | 110 | MINW.00808009.XXX |
| 8 | Katie | 29/01/2025 12:12 PM | Katie | 29/01/2025 12:12 PM | 80 | 800 | 14 | 555 | 404 | 269 | 179 | MINW.00808014.XXX |
| 9 | Katie | 29/01/2025 12:12 PM | Katie | 29/01/2025 12:12 PM | 80 | 800 | 19 | 762 | 555 | 369 | 246 | MINW.00808019.XXX |
| 10 | Katie | 29/01/2025 12:12 PM | Katie | 29/01/2025 12:12 PM | 80 | 900 | 9 | 383 | 279 | 186 | 123 | MINW.00809009.XXX |
Composition of the order code
Hover over the parts below to find out what they stand for
MINW
060
10
XXX
-
Mini Brochure
Brochure
-
Manual - Mini
Manual
Standard Delivery
- Low-H2O heat exchanger, air vent 1/8" and drain plug 1/2"
- casing in one piece for connection left or right
- wall brackets in the same colour as the casing
Dimensions
